1968 MARSHALL WELLS BLACK HAWK SNOWMOBILE

FEBRUARY 22, 2011

1968 MARSHALL WELLS BLACK HAWK.

THIS SLED WAS FOR SALE ON EBAY.

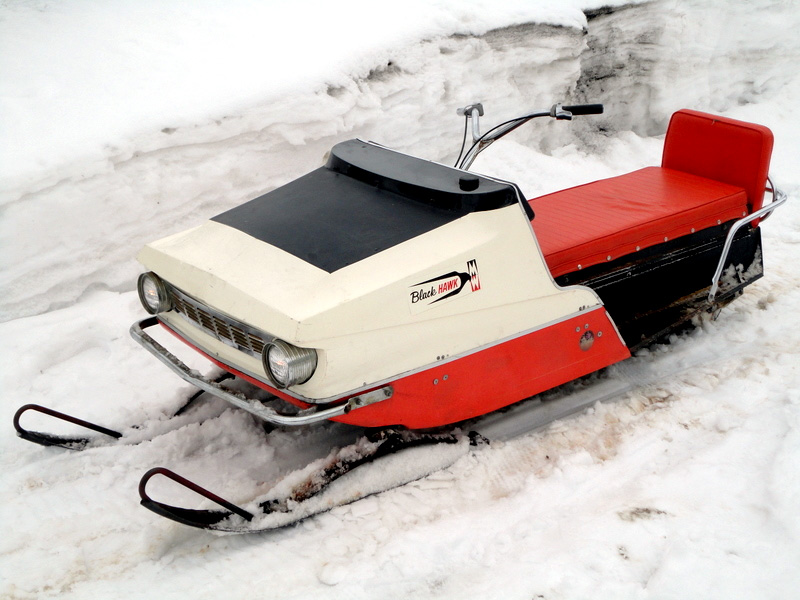

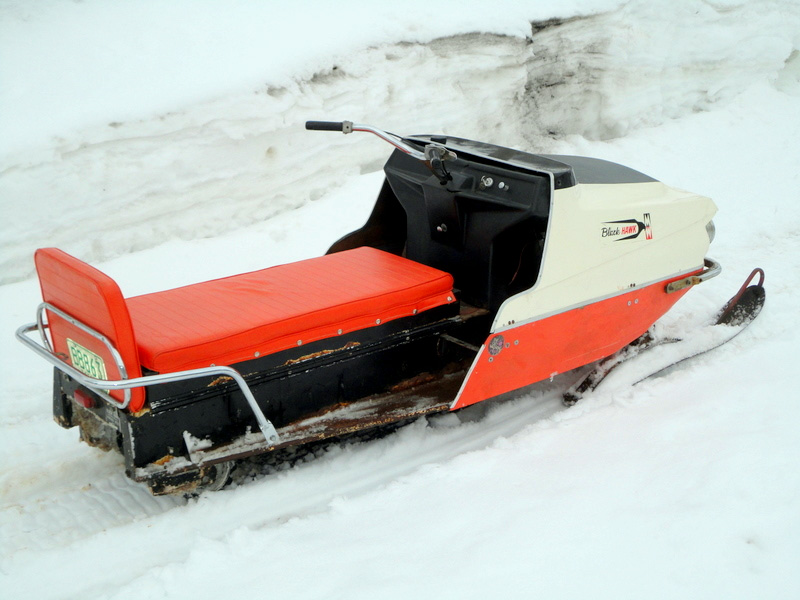

1968 Marshall Wells Black Hawk

You are bidding on a 1968 Marshall Wells Black Hawk snowmobile,

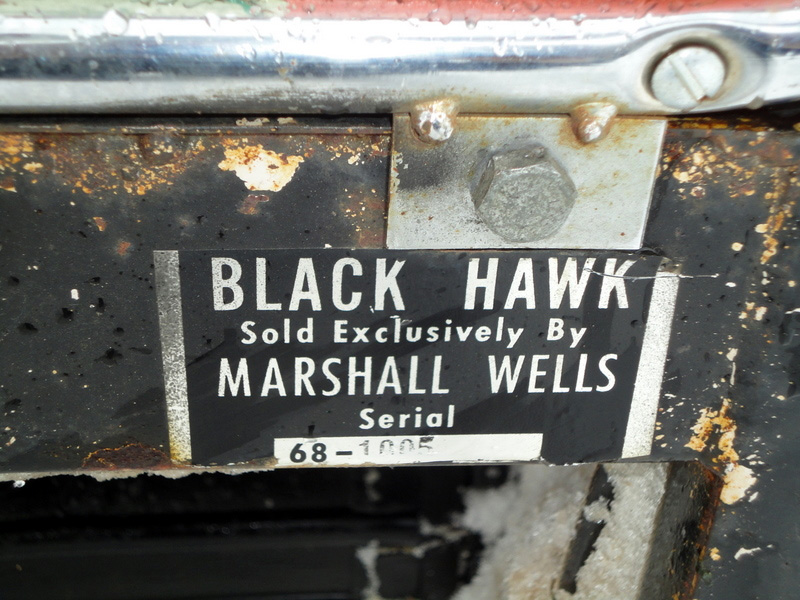

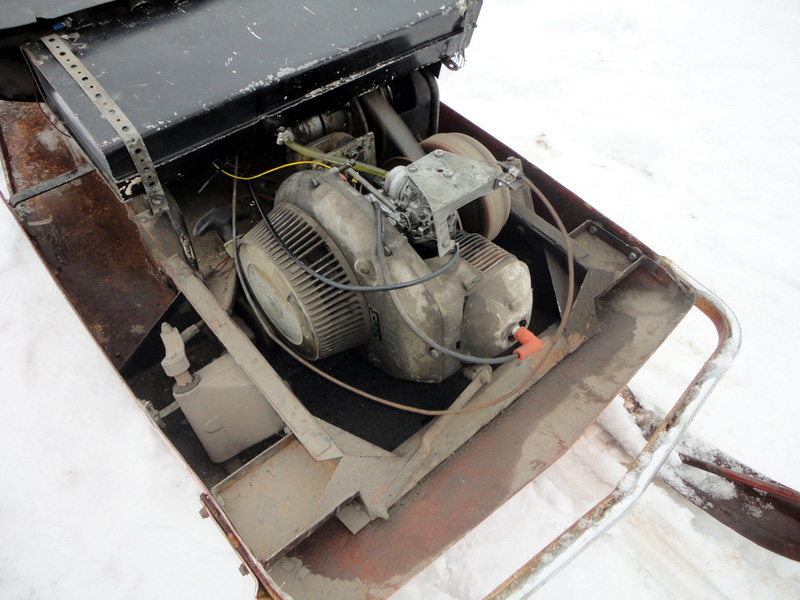

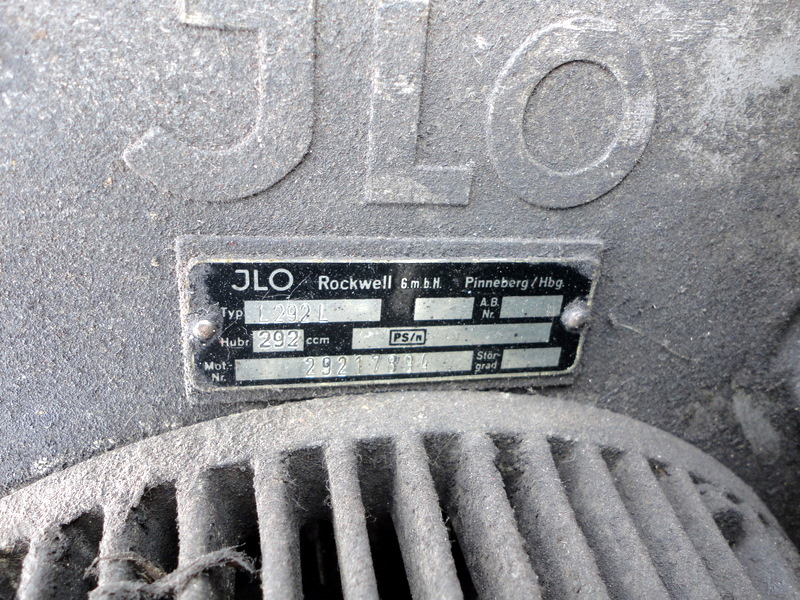

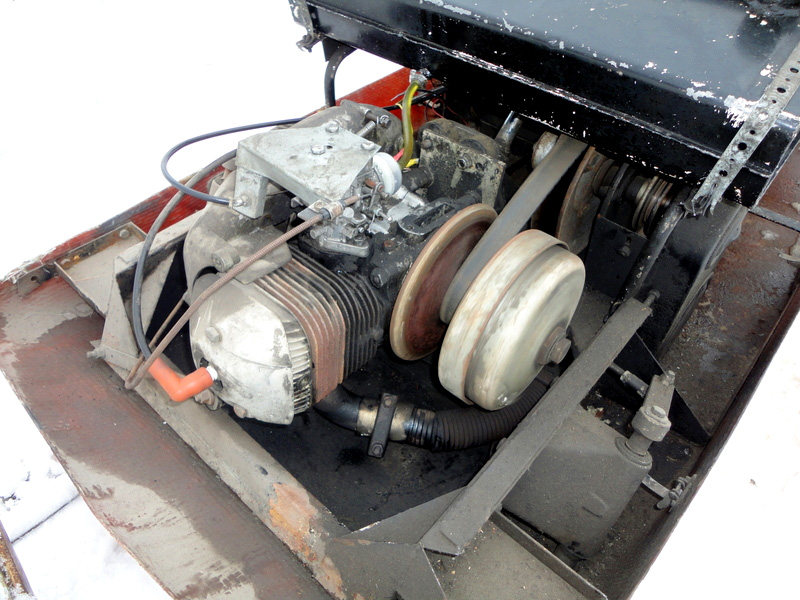

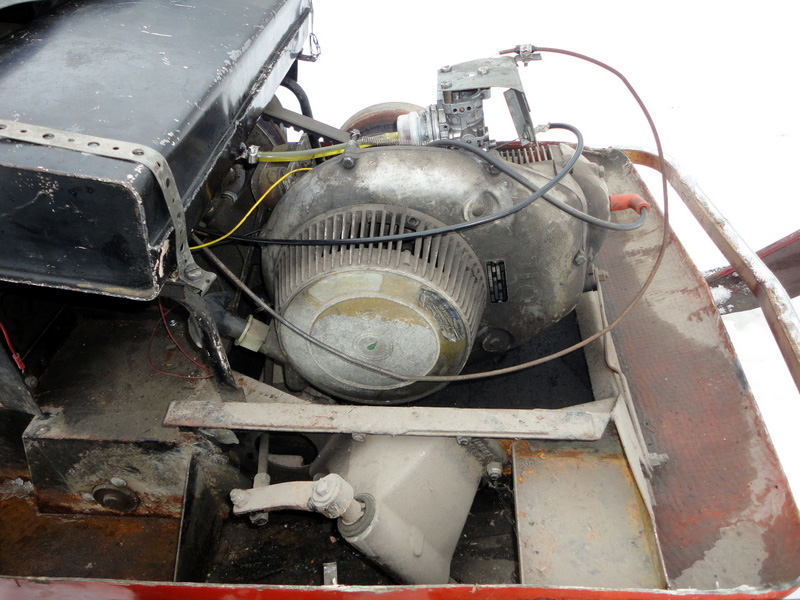

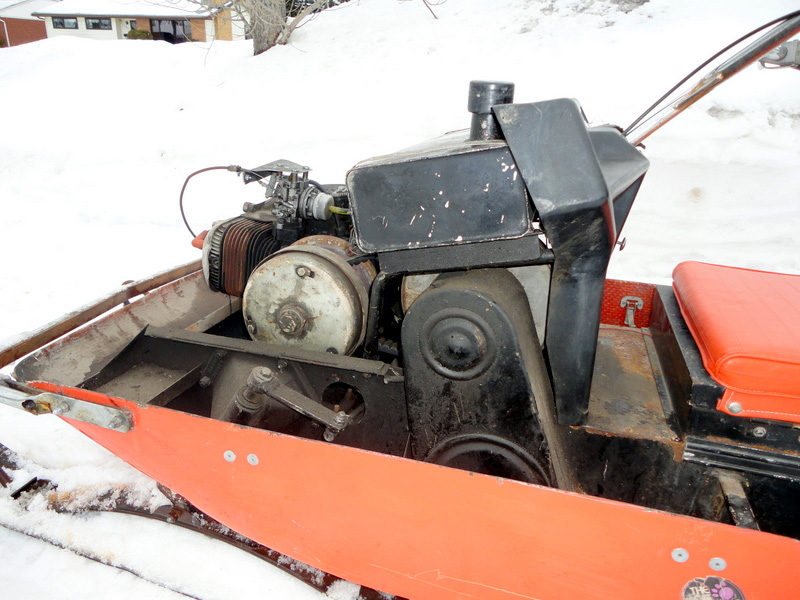

serial number 68-1005, with a 292cc single cylinder JLO motor.
I believe this snowmobile is based on the 1967 Larson Hawk. This snow machine was
purchased new by the Marshall Wells hardware store dealer in Esterhazy, Saskatchewan,
for his personal use. I remember this snowmobile from new, as our family and the
owner's family were friends and we went snowmobiling together in the late 1960's and
early 1970's. I purchased this snowmobile from the original owner in 1998.
This snowmobile has been in inside storage since it was new. It is in 95% original,
unrestored condition. The snowmobile is almost complete. The windshield, and
original gas cap are missing, and there is no rubber flap on the rear of the machine.
The original key is missing. I have replaced the original ignition switch with a new
generic keyed ignition switch. It operates the opposite to what would be considered
normal: OFF is to the right, ON is to the left, because to the left breaks the connection,
and to the right makes the connection to ground to stop the motor. The original switch is
included with the sled. When I bought the snowmobile, I put a carb kit in the Tillotson
carburetor, and was able to start it with no problem. The compression on the motor is
140 psi. Other than being started in 1998 when I got it, and being driven about 1/2 mile this
February 13, 2011, when most of these picture were taken, I believe this snowmobile has

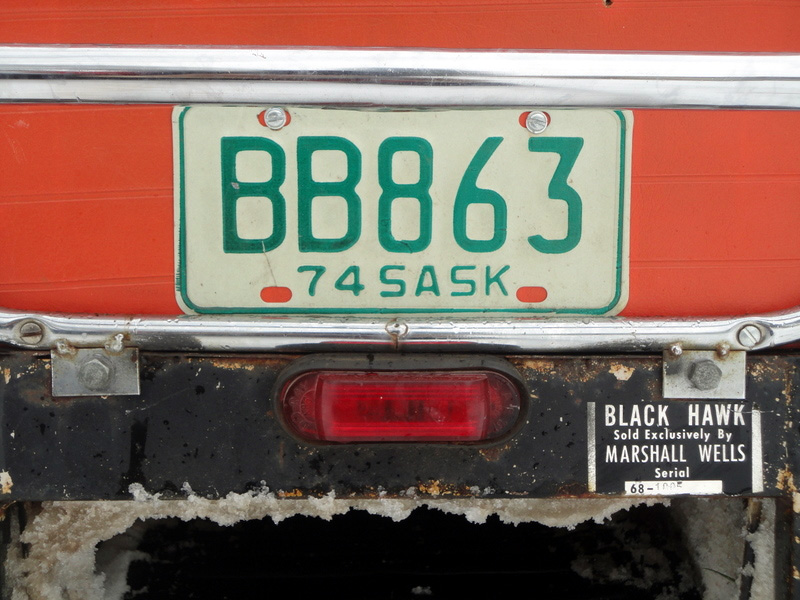

not been used since 1974, as indicated by the 1974 license plate on the back of the back
rest. I also replaced the spark plug boot, as the original was cracked and broken.
The choke was not hooked up when I got the sled. I made a simple "L" bracket to
mount the end of the choke control. I didn't drill any holes in the original bracket on the
carb to do this, as there was already a hole there. I am not sure if the pipe from the
motor to the muffler is original or not, or if it has been repaired or replaced in the past.

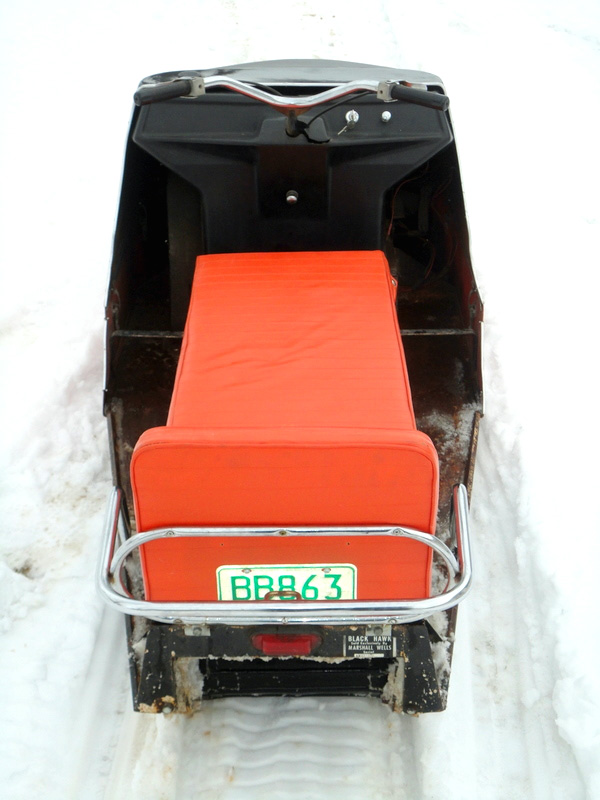

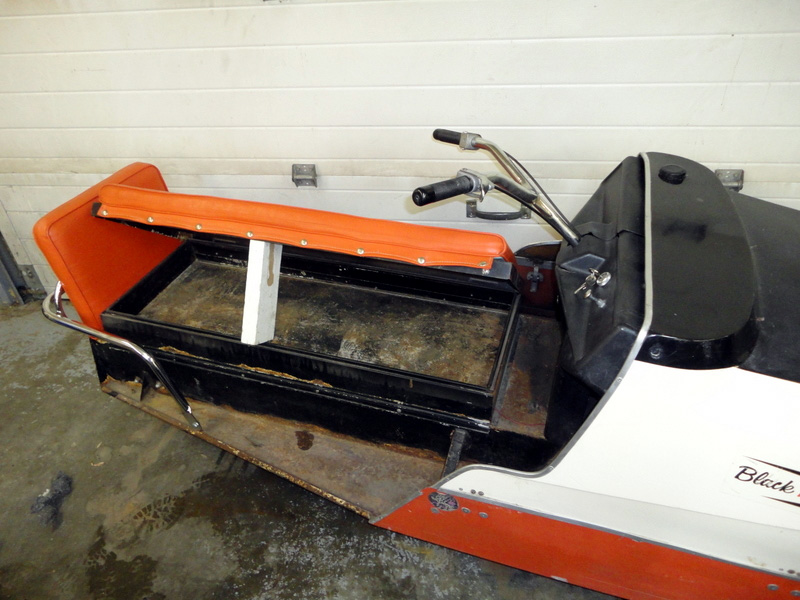

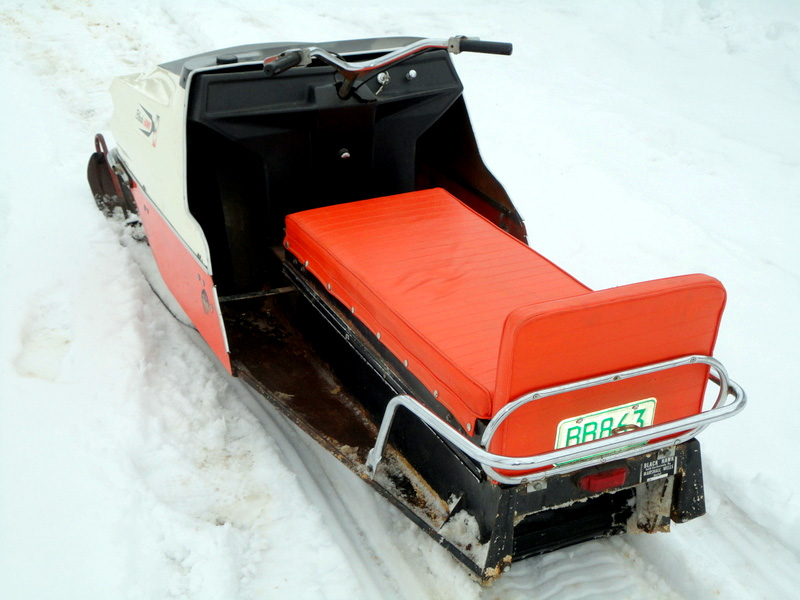

This snowmobile is in good condition, considering it is 43 years old. The main vinyl
seat is in good condition with no rips or tears. The backrest has a nick out of the piping
along the top edge. 3 of the screws that hold the backrest in place are not original, and I

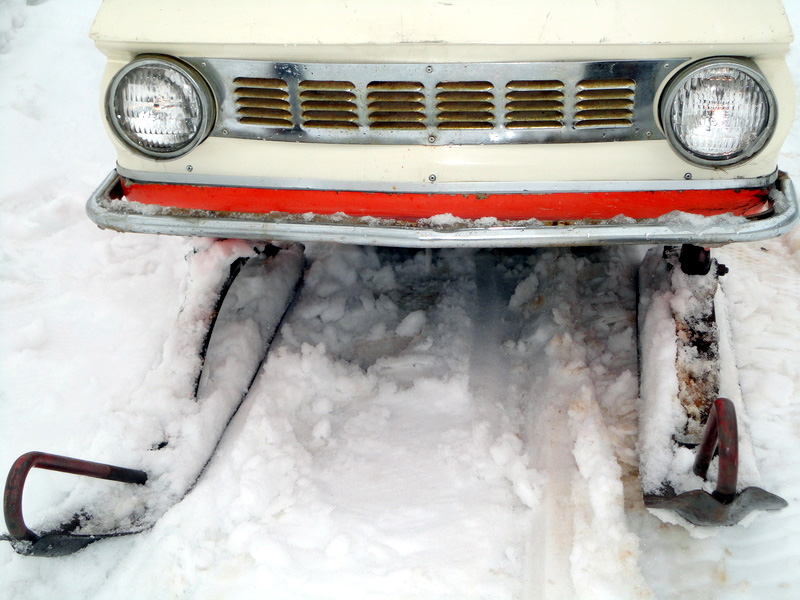

replaced the two screws that hold the license plate in place. At some time in the past,
the original owner had a reinforcing flatbar placed behind the chrome front bumper.
It is tack welded in place in a couple of spots. The track has cracks in it. It is in poor to

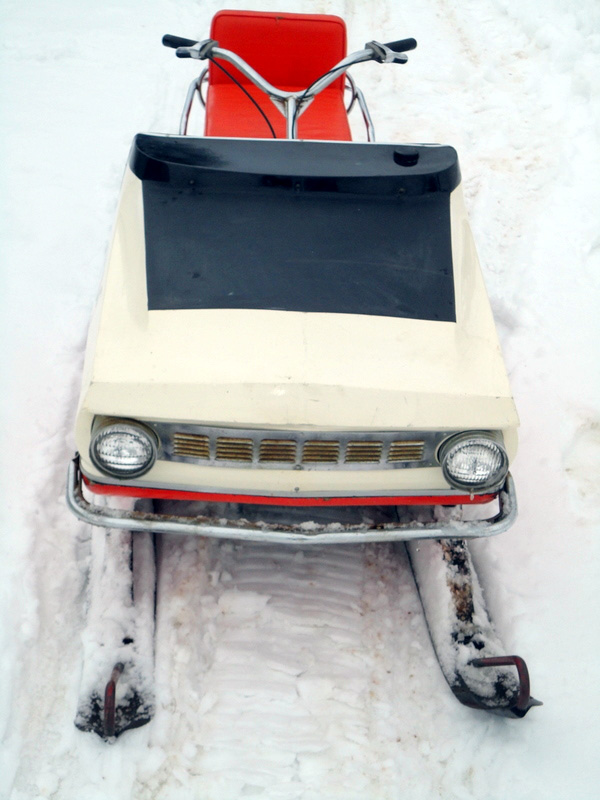

fair condition. The hood is in good condition. I did put in 4 new rivets that hold the
aluminum trim to the bottom edge of the hood. The original rivets were simply
missing and appeared to have just fallen out. There are scratches in the hood from use.
The right and left front corners of the lower orange fiberglass panel have some minor
damage from where the hood fits on, and there are scratches on the surface of the side
panels. The handlebars have some left and right play in them. The chrome handlebar tube
and a lower tube fit over a solid steering shaft, above and below a support, and the
holes in the tubes are worn oblong where the bolts go thru both the tube and solid shaft.
The holes in the solid shaft are ok. I did put a new bolt through the upper tube and shaft.
The rest of the steering linkage is ok. There is minor surface rust on the chrome trim as
can be seen in the photos, and surface rust on the steel framework, the skis and springs.

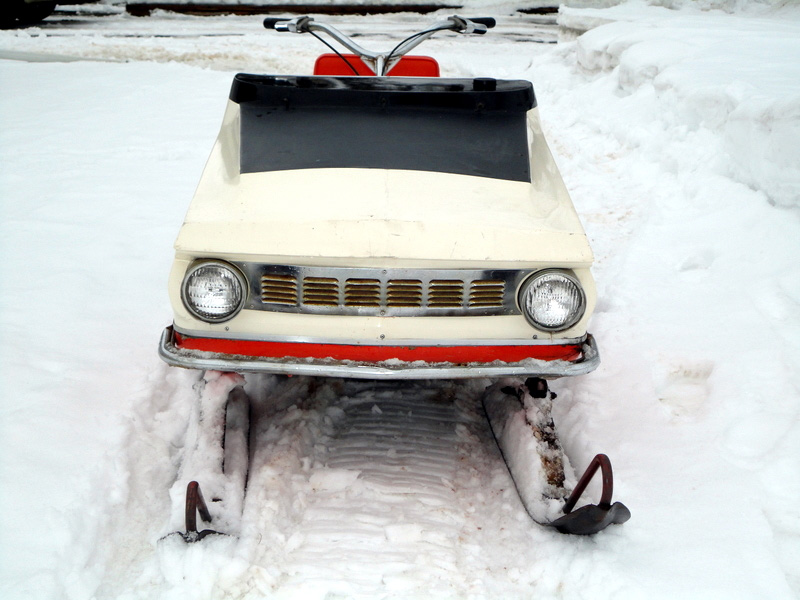

The headlights and tail light work. There is no brake light, as there is no brake light switch, and there is just a single wire to the tail light. The brake could use some attention, as
it does not work as well as it could. The thin black plastic that makes up the

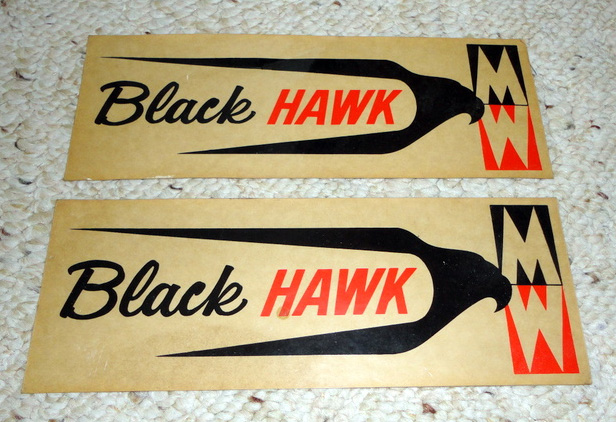

dash has some large cracks in it. I have two

NOS Black Hawk decals that go with the snowmobile. We do not have titles for
snowmobiles in Canada. However, you could consider the title to be free and clear and
in my name if we did have titles. This sled will be sold with a bill of sale.

This sled in Esterhazy, Saskatchewan, Canada.
